Pneumatic Carton Staplers PCS3518A ~ PCS3522C

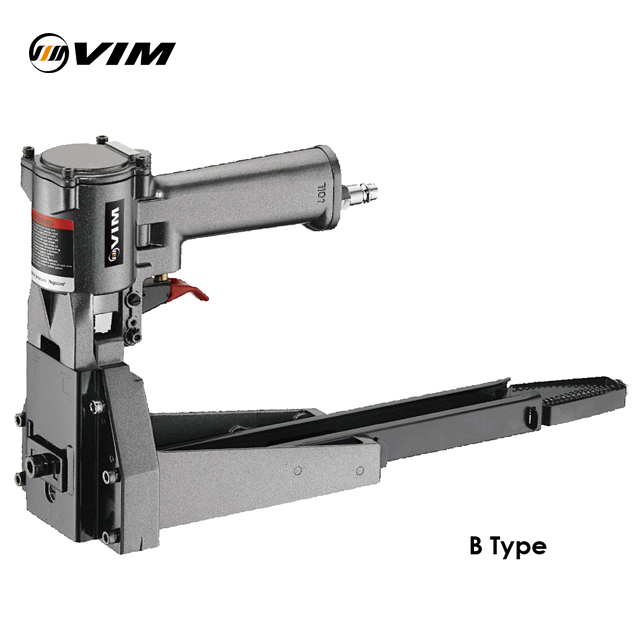

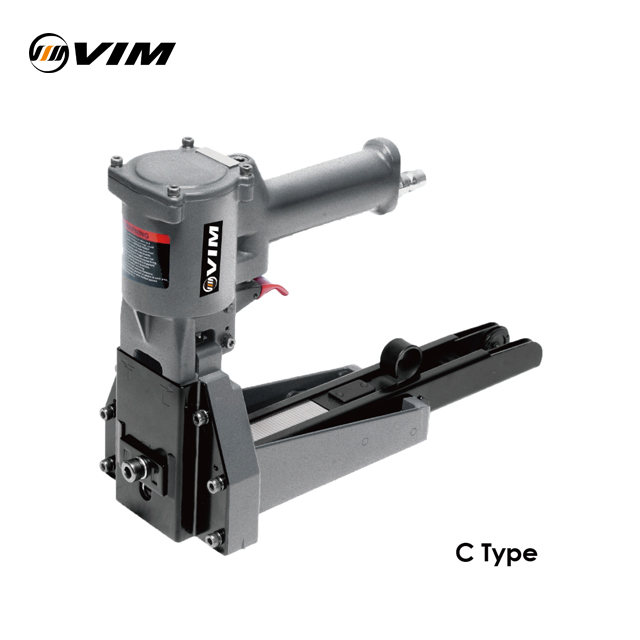

Type | A Type | B Type | C Type |
LxWxH | 415x115x220 mm | 415x115x220 mm | 320x115x225 mm |
Weight | 2.65 kgs | 2.65 kgs | 2.48 kgs |
Working Pressure | 70~100 psi | 70~100 psi | 70~100 psi |

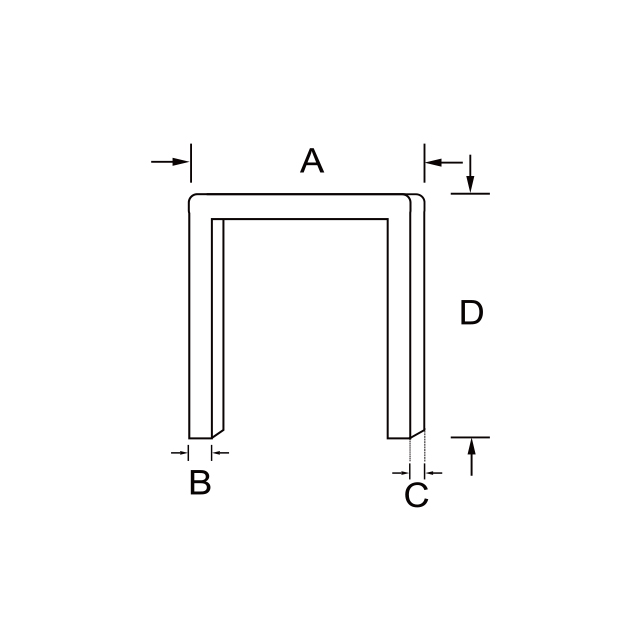

Model No | Crown(A) | Width(B)X Thickness(C) |
Length(D) | Capacity |
PCS3518A/PCS3518B/PCS3518C | 34.7 mm | 0.9X2.3 mm | 15,18 mm | 100 pcs |
PCS3419A/PCS3419B/PCS3419C | 34 mm | 0.9X2.3 mm | 16,19 mm | 100 pcs |
PCS3218A/PCS3218B/PCS3218C | 32 mm | 0.9X1.9 mm | 15,18 mm | 100 pcs |
PCS743718A/PCS743718B/PCS743718C | 34.5 mm | 0.9X1.9 mm | 15,18 mm | 100 pcs |
PCS904018A/PCS904018B/PCS904018C | 34.5 mm | 0.9X2.3 mm | 15,18 mm | 100 pcs |
PCS3522A/PCS3522B/PCS3522C | 34.7 mm | 0.9X2.3 mm | 18,22 mm | 100 pcs |
APPLICATION

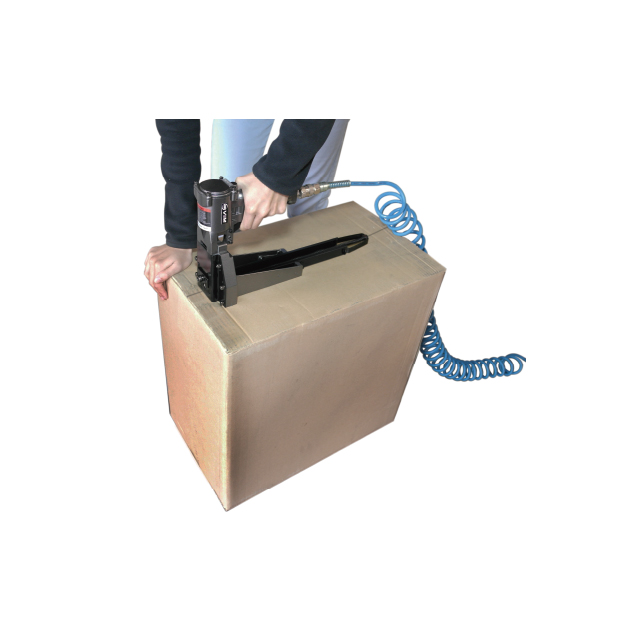

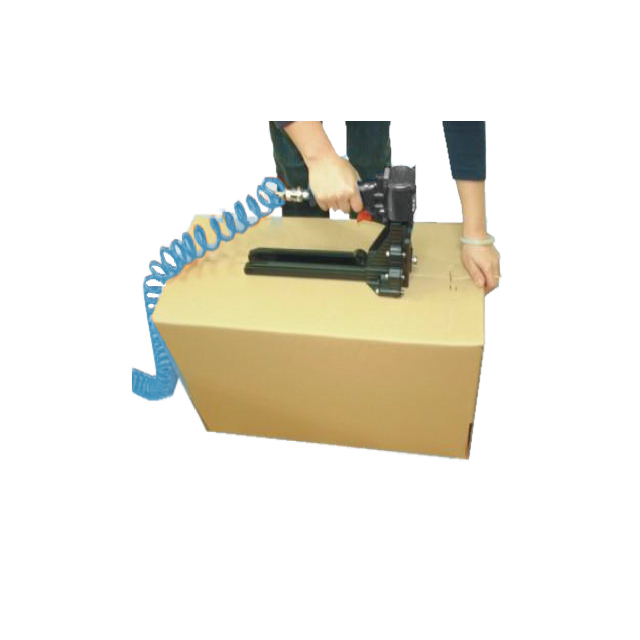

For closing filled folding boxes made of strong double & triple corrugated cardboard
FEATURES
For closing filled folding boxes made of strong double & triple corrugated cardboard
FEATURES
The air boxer is the most suitable machine when high speed and efficency are required
It is possible to adjust the clinching of the staple as well as its penetration
Handy and light
The air boxer reduces a minimum operator fatigue
