Pneumatic Coil Carton Staplers PCIRR3218, PCIGR3218, PCIRR3222, PCS3418, PCT3218

LxWxH 233x115x230 mm
Weight 2.38 kgs
Working Pressure 70~100 psi

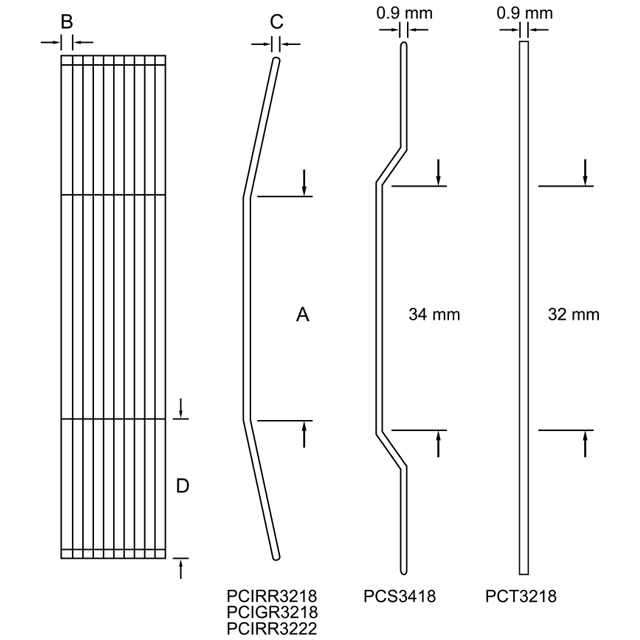

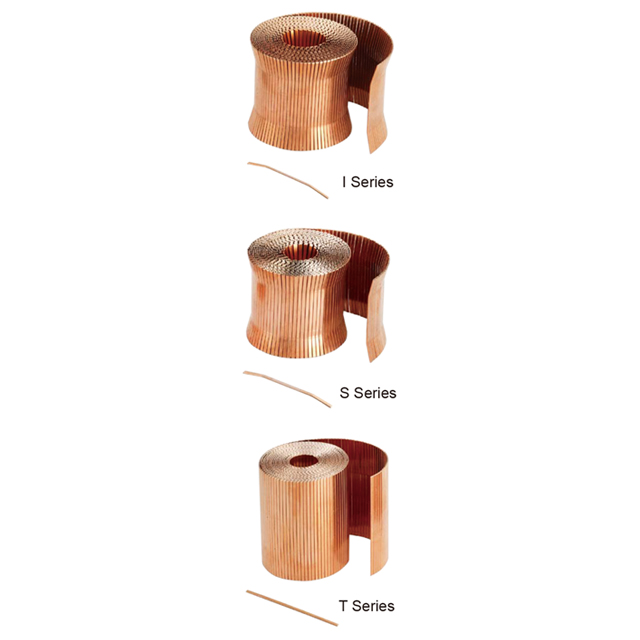

Model No Crown(A) Staple Series Width(B)XThickness(C) Length(D) Capacity
PCIRR3218 32 mm I Series 0.9X1.9 mm 15,18 mm 1000 pcs
PCIGR3218 32 mm I Series 0.9X2.3 mm 15,18 mm 1000 pcs
PCIRR3222 32 mm I Series 0.9X2.3 mm 18,22 mm 1000 pcs
PCS3418 34 mm S Series 0.9X1.9 mm 15,18 mm 1000 pcs
PCT3218 32 mm T Series 0.9X1.9 mm 15,18 mm 1000 pcs

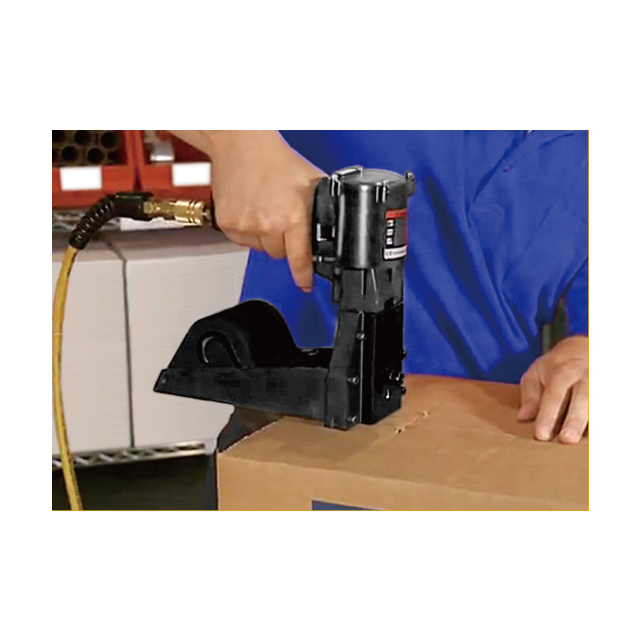

APPLICATION

Small to medium box closure
Ideal for overlap cartons and five panel folders
Ideal for replacing or enhancing glue system

FEATURES

Coll feed carton top sealer
Drives 1000 wide crown stapler
Combines light weight and balance for fast
Efficient operation
Fell cycle action for maximum speed
Quick release to prevent jams and adjustment for the tightness and the depth of clinch
