Rear Exhaust Upholstery Stapler With Long Nose, Auto Firing 5016ALN-6416ALN
| L x W x H | 216 x 197 x 38mm |
| Weight | 0.9 kgs |
| Working Pressure | 70~110 psi |

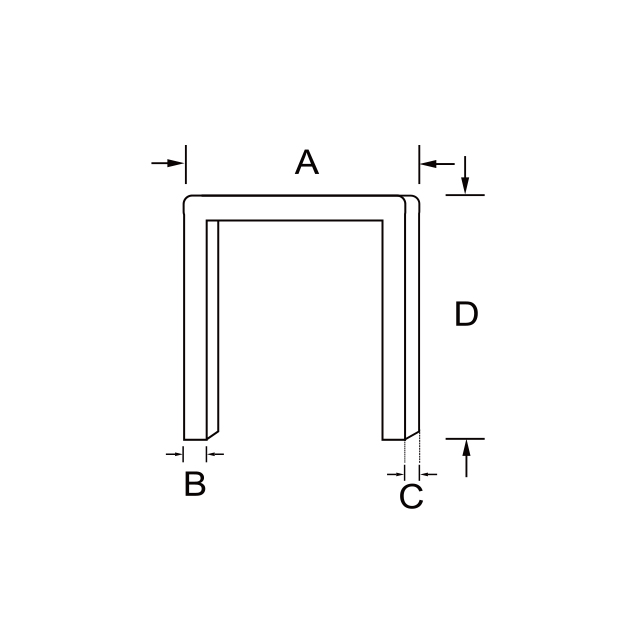

| Model No | Gauge | Crown(A) | Width(B) x Thickness(C) | Length(D) | Capacity |
| 5016ALN | 20GA | 12.6 mm | 0.5 x 1.25 mm | 5~16 mm | 100pcs |
| 7116ALN | 22GA | 9.1 mm | 0.6 x 0.75 mm | 5~16 mm | 150 pcs |
| 8016ALN | 21GA | 12.9 mm | 0.65 x 0.95 mm | 5~16 mm | 100 pcs |
| 1013JALN | 20GA | 11.2 mm | 0.6 x 1.2 mm | 5~16 mm | 100 pcs |
| 1013FALN | 23GA | 11.2 mm | 0.5 x 0.7 mm | 5~16 mm | 150 pcs |
| 6416ALN | 22GA | 12.5 mm | 0.55 x 0.75 mm | 6~16 mm | 100 pcs |
APPLICATION
Furniture
Upholstering
Automotive vinyl
Interior
Trim
House decoration
Carpet edge
FEATURES
FEATURES
Patent one hand manual rear latch(easy loading)
Compact tool design-less parts
Powerful(Rapid shooting up to 16mm)
The shortest fastener 3mm can be shot without tumbling
Rear air exhaust ,anti dirt on workpiece
Rapid trigger valve - 20 shots/ @second
Low air consumption(Save 30 to 40% compare with competitor)
Durable drive Unit and bumper
