RUBBER -M8 SERIES
M8 SERIES
RUBBER BLIND RIVET NUT
METRIC SIZE:MM
RUBBER BLIND RIVET NUT
METRIC SIZE:MM
|
PART NO.
|
THREAD SIZE |

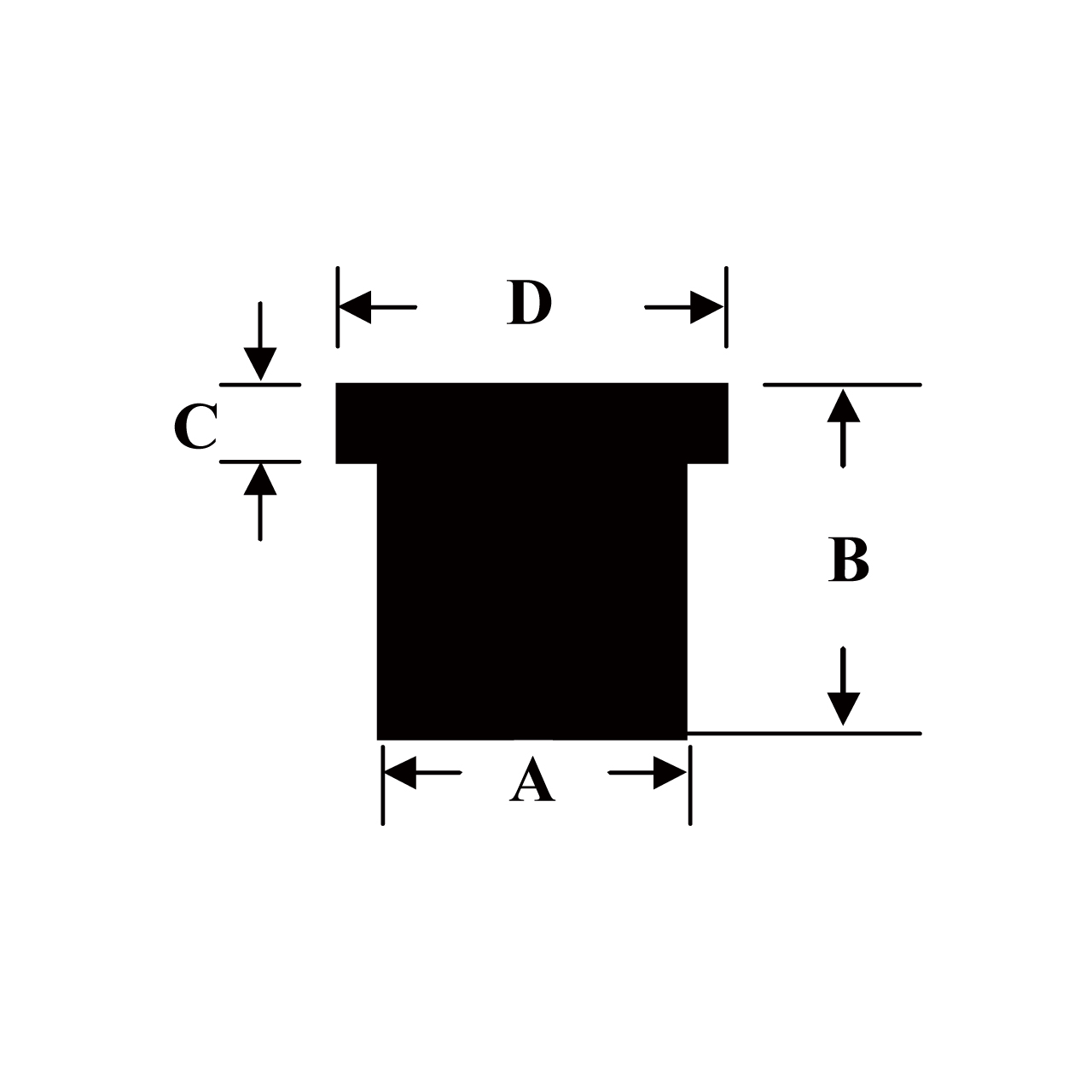

GEUP RANGE | HOLE SIZE | A | B | C | D |
|
RB820
|
M8x1.25
|
0.40-4.00 | 16.00 | 15.90 | 18.30 | 1.50 | 21.50 |
|
RB825
|
M8x1.25 | 3.95-9.50 | 16.00 | 15.90 | 27.90 | 3.20 | 21.50 |
| RB827 | M8x1.25 | 0.38-11.1 | 19.15 | 19.50 | 27.00 | 30.0 | 31.75 |
| RB830 | M8x1.25 | 2.00-18.0 | 18.00 | 18.00 | 30.00 | 1.00 | 20.50 |
| RB850 | M8x1.25 | 15.00-39.0 | 18.00 | 18.00 | 50.00 | 2.00 | 20.00 |
