RUBBER -M6 SERIES
M6 SERIES
RUBBER BLIND RIVET NUT
METRIC SIZE:MM
.jpg)
RUBBER BLIND RIVET NUT
METRIC SIZE:MM
|
PART NO.
|
THREAD SIZE |

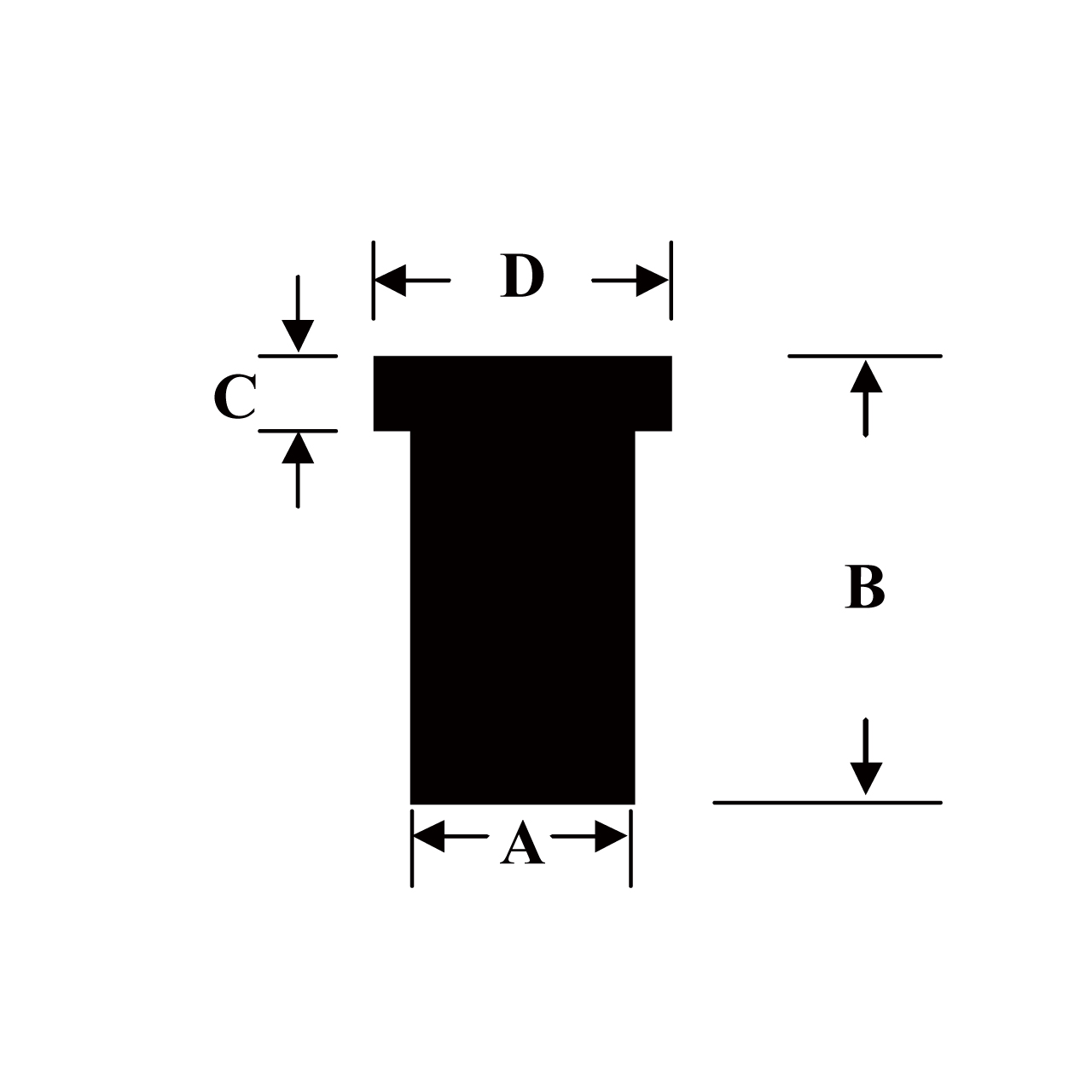

GEUP RANGE | HOLE SIZE | A | B | C | D |
|
RB615
|
M6x1.0
|
0.40-4.00 | 12.80 | 12.70 | 16.00 | 1.30 | 16.00 |
|
RB616
|
M6x1.0 | 0.40-4.00 | 12.80 | 12.70 | 16.00 | 1.30 | 20.00 |
| RB619 | M6x1.0 | 4.70-8.70 | 12.80 | 12.70 | 20.30 | 1.30 | 16.00 |
| RB620 | M6x1.0 | 0.80-4.70 | 12.80 | 12.70 | 21.10 | 4.75 | 19.50 |
| RB625 | M6x1.0 | 6.40-11.5 | 12.80 | 12.70 | 26.70 | 2.00 | 16.30 |
| RB635 | M6x1.0 | 11.5-23.0 | 13.00 | 13.00 | 35.00 | 1.30 | 16.00 |
| RB650 | M6x1.0 | 28.0-38.0 | 12.70 | 12.70 | 50.00 | 3.20 | 16.00 |
