RUBBER -M5 SERIES
M5 SERIES
RUBBER BLIND RIVET NUT
METRIC SIZE:MM
RUBBER BLIND RIVET NUT
METRIC SIZE:MM
|
PART NO.
|
THREAD SIZE |

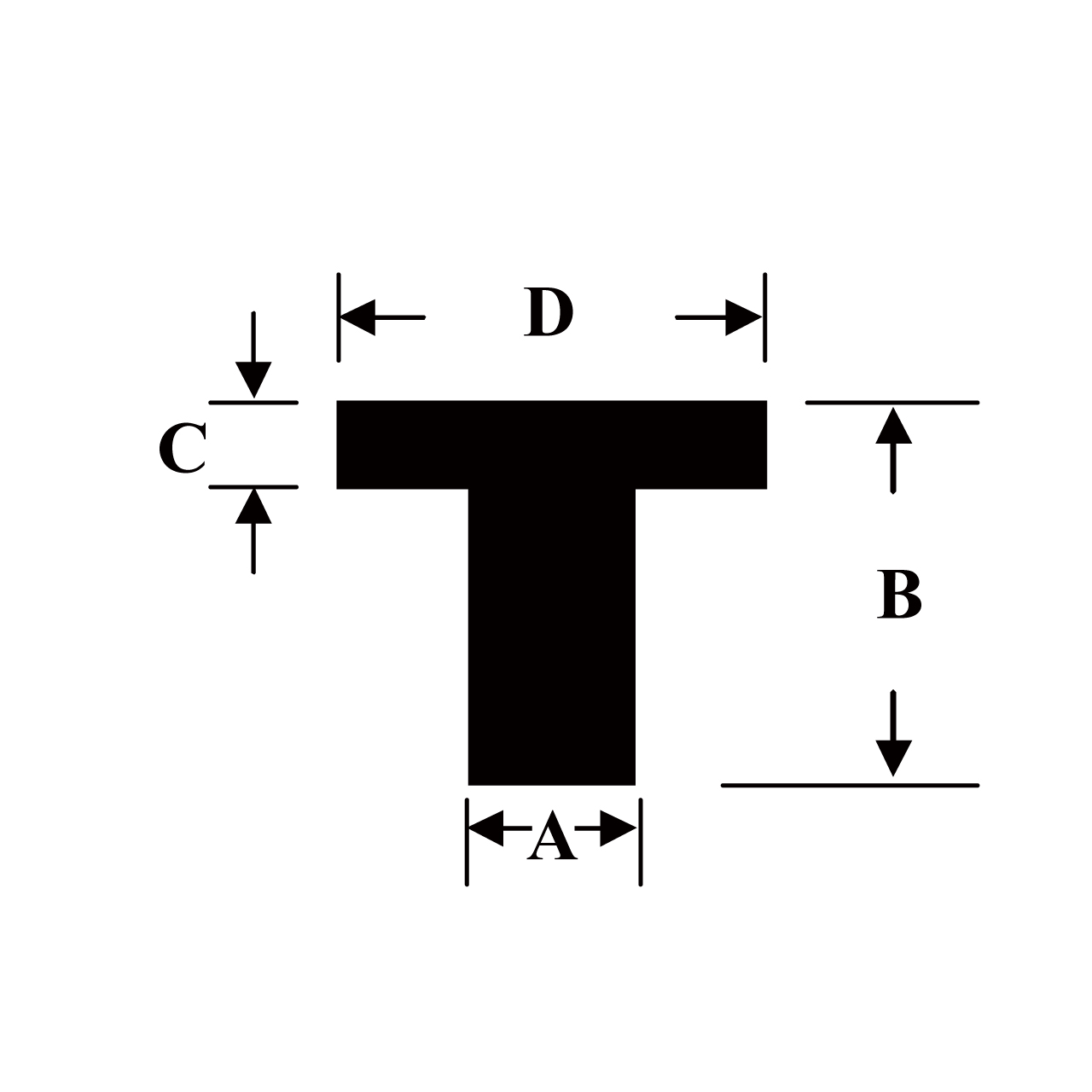

GEUP RANGE | HOLE SIZE | A | B | C | D |
|
RB511
|
M5x0.8
|
0.50-1.50 | 9.70 | 9.60 | 11.00 | 1.50 | 12.70 |
|
RB514
|
M5x0.8
|
0.40-1.30 | 9.70 | 9.60 | 14.00 | 3.20 | 14.20 |
| RB515 | M5x0.8 | 0.40-4.90 | 9.70 | 9.60 | 14.10 | 0.90 | 12.70 |
| RB517 | M5x0.8 | 0.85-5.90 | 9.70 | 9.60 | 17.00 | 1.00 | 14.00 |
| RB518 | M5x0.8 | 0.80-5.80 | 9.70 | 9.60 | 18.00 | 2.00 | 19.00 |
| RB519 | M5x0.8 | 0.80-5.80 | 9.70 | 9.60 | 20.95 | 4.70 | 18.95 |
| RB5192 | M5x0.8 | 0.80-5.80 | 9.70 | 9.60 | 19.50 | 4.70 | 14.00 |
| RB520 | M5x0.8 | 4.00-10.00 | 9.70 | 9.60 | 21.50 | 0.90 | 14.00 |
| RB525 | M5x0.8 | 7.90-15.0 | 9.70 | 9.60 | 26.50 | 1.30 | 14.00 |
| RB540 | M5x0.8 | 20.5-30.0 | 9.70 | 9.60 | 39.00 | 1.30 | 14.00 |
| RB544 | M5x0.8 | 25.0-32.0 | 9.60 | 9.60 | 44.00 | 1.20 | 14.00 |
