Pneumatic Stapling Pliers SP103020DL, SP5019DL, SPSFDL, SP777DL, SP779DL
| L x W x H | 370 x 55 x 240 mm |
| Weight | 2.2 kgs |
| Air pressure | 5-7 kg/cm² |

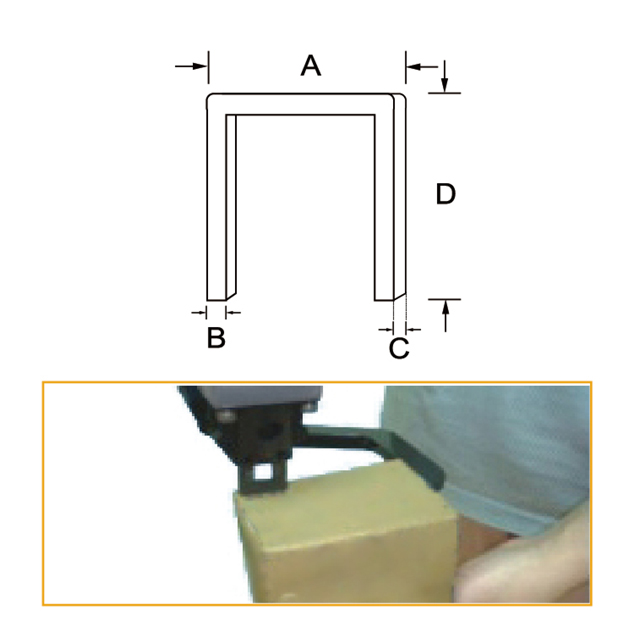

| Model NO | Crown(A) | Width(B) x Thickness(C) | Staples Length(D) | Magazine Capacity |
| SP103020DL | 12.95 mm | 2.6 x 0.6 mm | 9.5,12.7,15.8 mm | 110 pcs |
| SP5019DL | 12.85 mm | 1.27 x 0.55 mm | 6.3,9.5,12.7,15.8 mm | 220 pcs |
| SPSFDL | 13.3 mm | 1.0 x 0.72 mm | 10,13,15 mm | 280 pcs |
| SP777DL | 12.3 mm | 0.65 x 2.25 mm | 9.5,12.7,15.8 mm | 140 pcs |
| SP779DL | 12.3 mm | 0.63 x 1.3 mm | 8,9.5,12.7,14,15.8 mm | 250 pcs |
.jpg)
APPLICATION
Fastening corrugated container
Vegetable tray boxes
End caps
Pallet boxes
Vegetable tray boxes
End caps
Pallet boxes
FEATURES
Powerful shuttle blade provides pre-compression prior and during the stapling operation giving a strong,tight closure without breaking the corrugated surface
High throat allows flexibility of staple placement and limits interference from obstacles such as box flanges
C-Curved blade available for sealing partial overlap cartons
Penetrates and securely fastens up to 2x AB flute or 4x C flute boards
High throat allows flexibility of staple placement and limits interference from obstacles such as box flanges
C-Curved blade available for sealing partial overlap cartons
Penetrates and securely fastens up to 2x AB flute or 4x C flute boards
