L x W x H	370 x 55 x 240 mm
Weight	2.2 kgs
Air pressure	5-7 kg/cm²

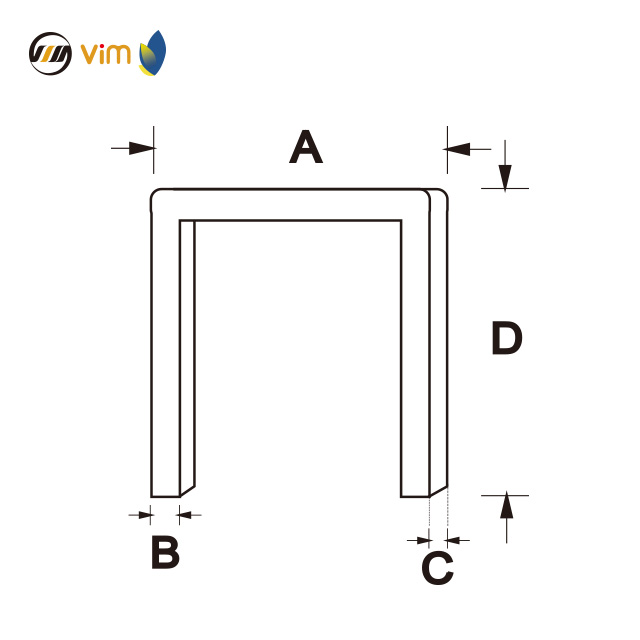

Model NO	Crown(A)	Width(B) x Thickness(C)	Staples Length(D)	Magazine Capacity
SP103020A	12.95 mm	2.6 x 0.6 mm	9.5,12.7,15.8 mm	110 pcs
SP5019A	12.85 mm	1.27 x 0.55 mm	6.3,9.5,12.7,15.8 mm	220 pcs
SPSFA	13.3 mm	1.0 x 0.72 mm	10,13,15 mm	280 pcs
SP777A	12.3 mm	0.65 x 2.25 mm	9.5,12.7,15.8 mm	140 pcs
SP779A	12.3 mm	0.63 x 1.3 mm	8,9.5,12.7,14,15.8 mm	250 pcs



APPLICATION

Fastening corrugated containers
Vegetable tray boxes
End caps
Pallet boxes
Container put in
Die cut put in
Stapling of fabric


FEATURES

Powerful shuttle blade provides pre-compression prior and during the stapling operation giving a strong,tight closure without breaking the corrugated surface

High throat allows flexibility of staple placement and limits interference from obstacles such as box flanges

C-Curved blade available for sealing partial overlap cartons

Penetrates and securely fastens up to 2x AB flute or 4x C flute boards
