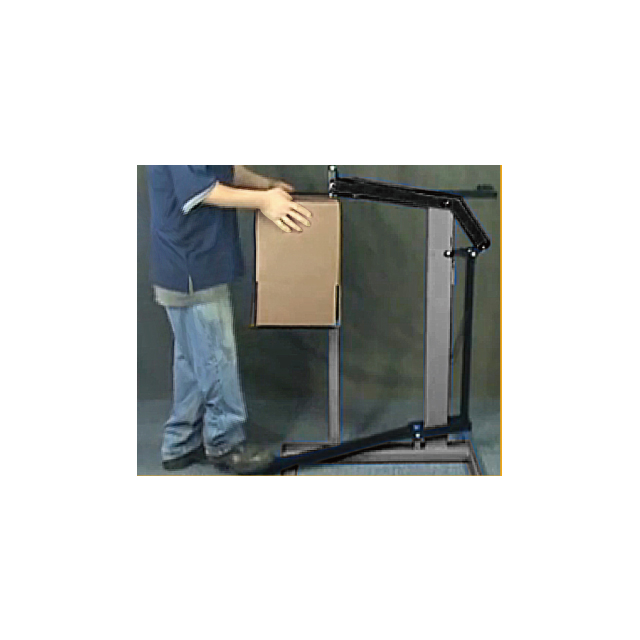

Pneumatic Side Bottomer HPB5315
| L x W x H | 985x732x1360 mm |
| Weight | 46.33 kgs |
| Working Height | 1085 mm |
| Throat Depth | 394 mm |
| Workung Pressure | 70~90 psi |

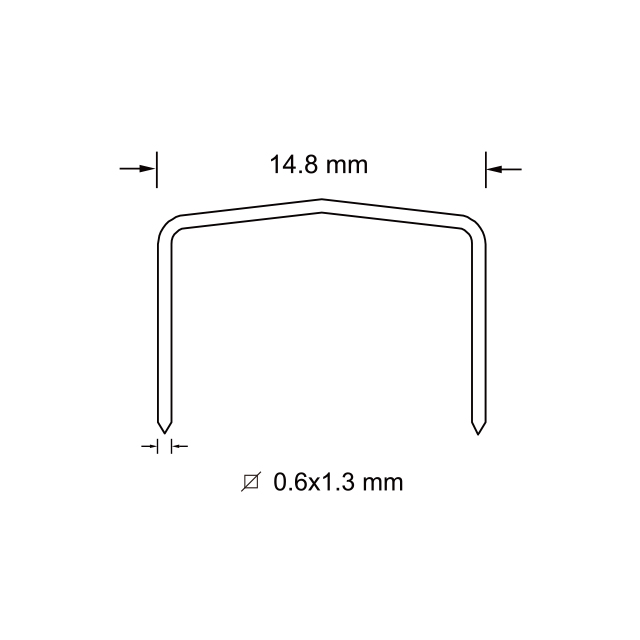

| Model No | Crown | WidthxThickness | Length | Capacity |
| HSB5315 | 14.8 mm | 0.6 x 1.3 mm | 6,9,12,15 mm | 315 pcs |
.jpg)
APPLICATION

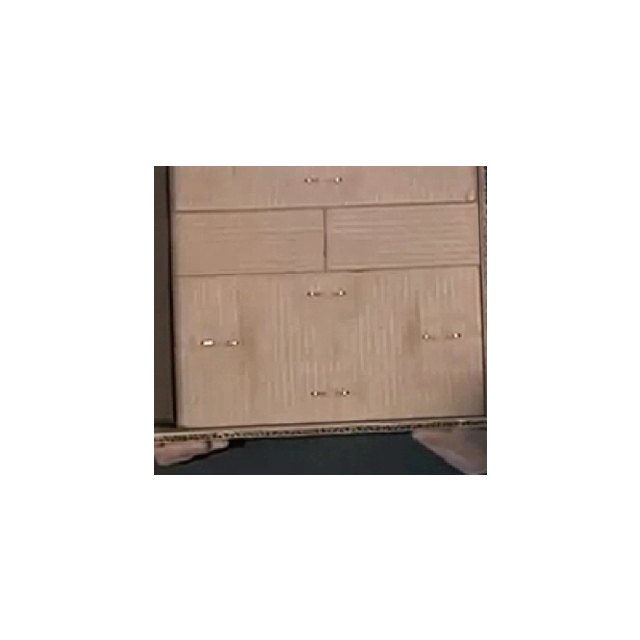

Bottom stapling
Transport packing
FEATURES
FEATURES
When the production output requires sealing of 50 to 100 caton bottoms per hour
The use of a pneumatic bottomer is advisable
This model is equipped with a safety foot pedal
Easy Staple load design for fast staple loading
Short ergonomic foot pedal designed for speed and easy actuation
Robust with steel tubing frame and wearing parts of hardened steel
Robust with steel tubing frame and wearing parts of hardened steel
