Pneumatic Hog Ring Pliers With Pedal
Model No HRP15687SOP  HRP15687MOP HRP15687LOP
L x W x H
(mm)		 540x400x380 540x400x380 540x400x380
Weight(kgs) 19.4 19.4 19.4
Nose Size 25 mm 40 mm 48 mm

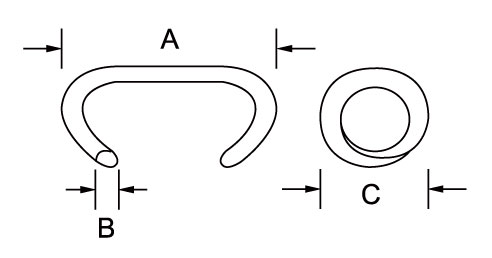

Crown(A) 15 Gauge crown : 23.87 mm / 16 Gauge crown : 23.47 mm
Dia(B) 15 Gauge dia : 1.8 mm / 16 Gauge dia : 1.6 mm
Closure
Size(C)		 4.8~8.7 mm  4.8~8.7 mm  4.8~8.7 mm
Loading Capacity 100 pcs  100 pcs  100 pcs
Working Pressure 70~90 psi  70~90 psi  70~90 psi

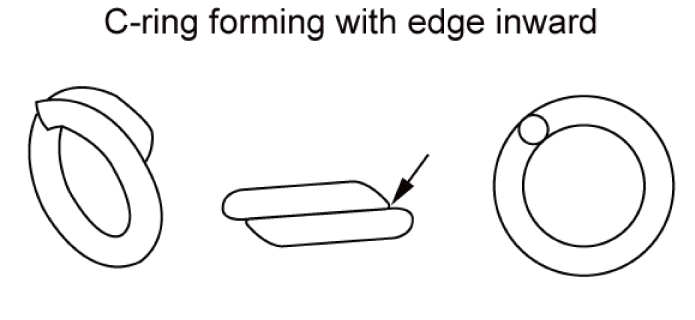

Closure Type

Model No HRP156107SOP HRP156107MOP HRP156107LOP
L x W x H
(mm)		 540x400x380 540x400x380 HRP156107LOP
Weight(kgs) 19.4 19.4 19.4
Nose Size 25 mm 40 mm 48 mm
Crown(A) 15 Gauge crown : 23.87 mm / 16 Gauge crown : 23.47 mm
Dia(B) 15 Gauge dia : 1.8 mm / 16 Gauge dia : 1.6 mm
Closure
Size(C)		  7.9~10.7 mm   7.9~10.7 mm   7.9~10.7 mm
Loading Capacity 100 pcs  100 pcs  100 pcs
Working Pressure 70~90 psi  70~90 psi  70~90 psi
Closure Type

Model No HRP156107SIP  HRP156107MIP HRP156107LIP  HR1656P
L x W x H
(mm)		 540x400x380 540x400x380 540x400x380  540x400x380
Weight(kgs) 19.4 19.4 19.4 19.4
Nose Size 25 mm 40 mm 48 mm 25 mm
Crown(A) 15 Gauge crown : 23.87 mm / 16 Gauge crown : 23.47 mm
Dia(B) 15 Gauge dia : 1.8 mm / 16 Gauge dia : 1.6 mm
Closure
Size(C)		 7.9~10.7 mm  7.9~10.7 mm  7.9~10.7 mm  2.8~5.6 mm
Loading Capacity 100 pcs  100 pcs  100 pcs  100 pcs
Working Pressure 70~90 psi  70~90 psi  70~90 psi  70~90 psi

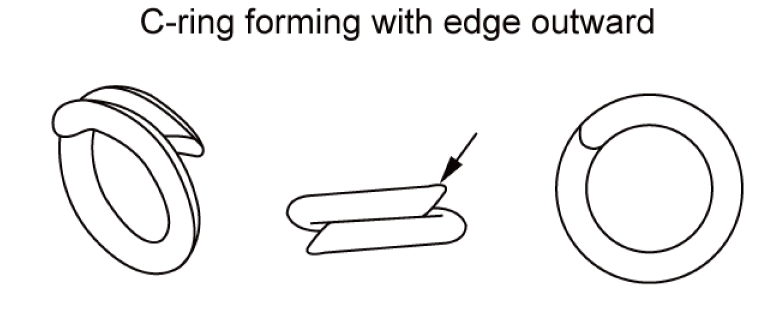

Closure Type C-ring forming
with
edge outward
