Model No	ASHBRI155	ASHBRI185	ASHBGI155	ASHBGI185	ASHBGI2235
L x W x H	536x148x259 mm

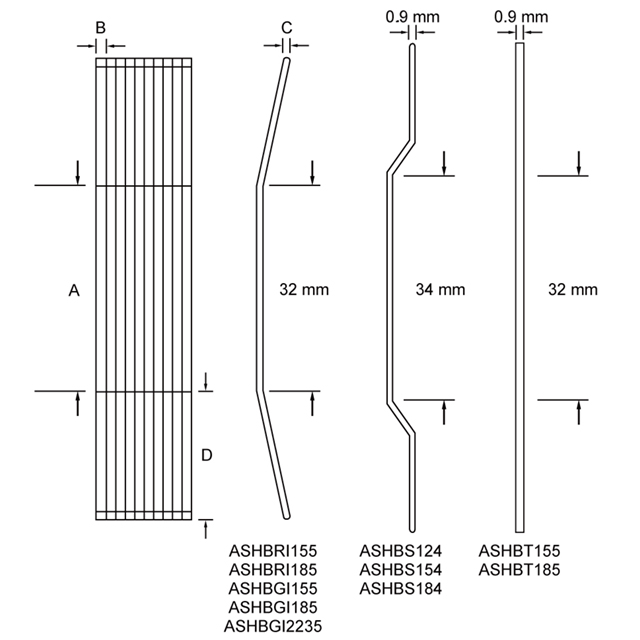

Crown(A)	32 mm	32 mm	32 mm	32 mm	32 mm
Staple Series	RI Series	RI Series	GI Series	GI Series	GI Series
Width(B)x Thickness(C)	0.9 x 1.9 mm	0.9 x 1.9 mm	0.9 x 2.3 mm	0.9 x 2.3 mm	0.9 x 1.9 mm
Length(D)	15 mm	18 mm	15 mm	18 mm	22 mm
Capacity	5000 pcs	5000 pcs	5000 pcs	5000 pcs	5000 pcs

Model No	ASHBS124	ASHBS154	ASHBS184	ASHBT155	ASHBT185
L x W x H	536x148x259 mm
Crown(A)	32 mm	32 mm	32 mm	32 mm	32 mm

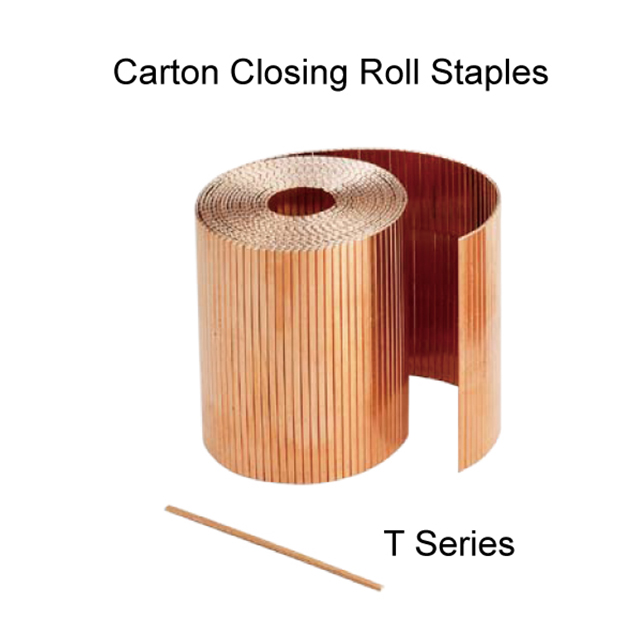

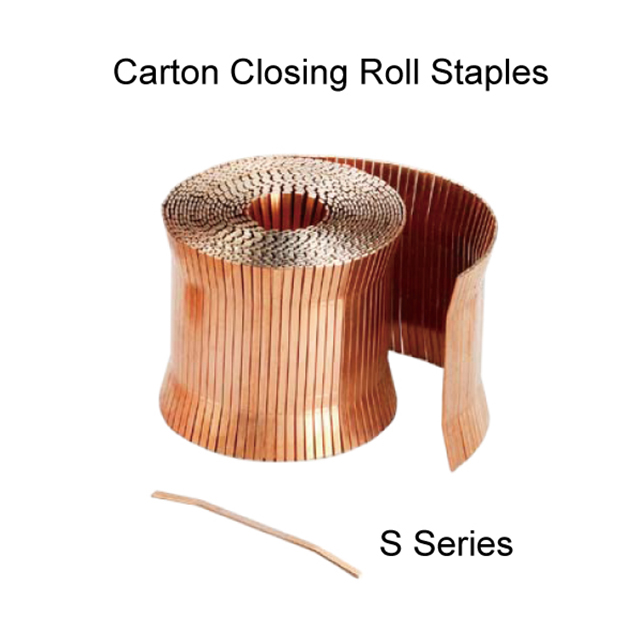

Staple Series	S Series	S Series	S Series	T Series	T Series
Width(B)x Thickness(C)	0.9 x 1.9 mm	0.9 x 1.9 mm	0.9 x 1.9 mm	0.9 x 1.9 mm	0.9 x 1.9 mm
Length(D)	12 mm	15 mm	18 mm	15 mm	18 mm
Capacity	4000 pcs	4000 pcs	4000 pcs	5000 pcs	5000 pcs

APPLICATION

FEATURES

I can operate continuously by patching staples with tape
Penetration depth of staples is adjustable (0~5mm)
Proper design for high-speed operation
Automatic stop device is on when staples are running out
