Model No	ASHRI155	ASHRI185	ASHGI155	ASHGI185	ASHGI2235
L x W x H	479x148x260 mm

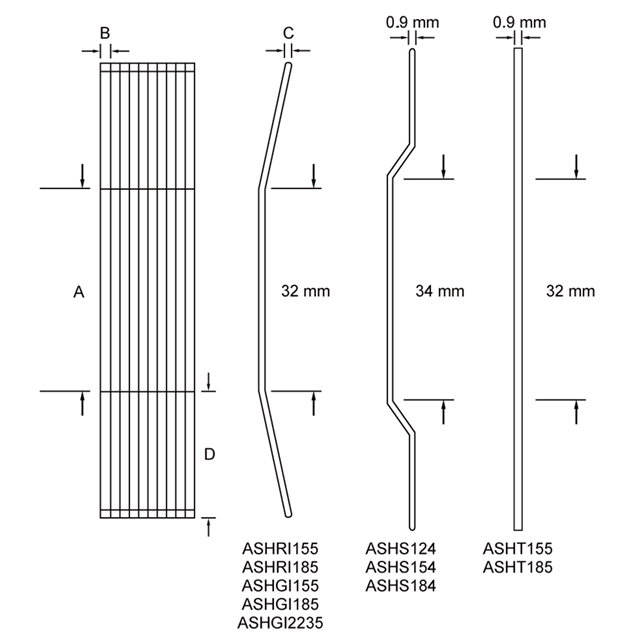

Crown(A)	32 mm	32 mm	32 mm	32 mm	32 mm

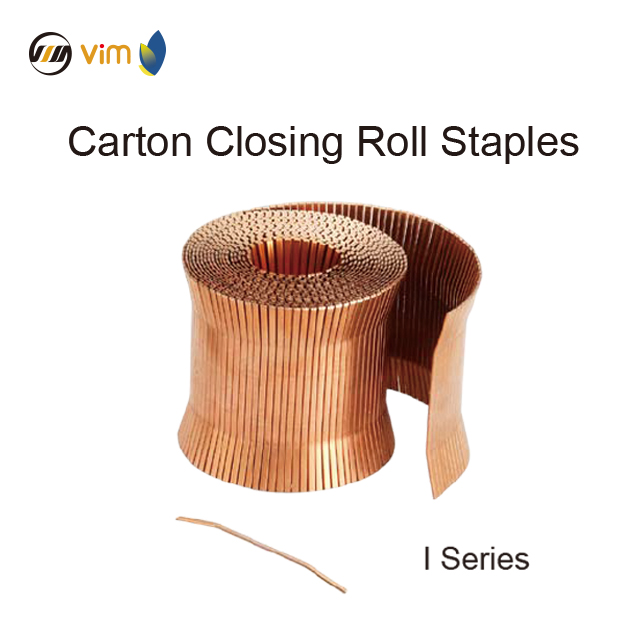

Staple Series	RI Series	RI Series	GI Series	GI Series	GI Series
Width(B)x Thickness(C)	0.9 x 1.9 mm	0.9 x 1.9 mm	0.9 x 2.3 mm	0.9 x 2.3 mm	0.9 x 1.9 mm
Length(D)	15 mm	18 mm	15 mm	18 mm	22 mm
Capacity	5000 pcs	5000 pcs	5000 pcs	5000 pcs	5000 pcs

Model No	ASHS124	ASHS154	ASHS184	ASHT155	ASHT185
L x W x H	479x148x260 mm
Crown(A)	32 mm	32 mm	32 mm	32 mm	32 mm

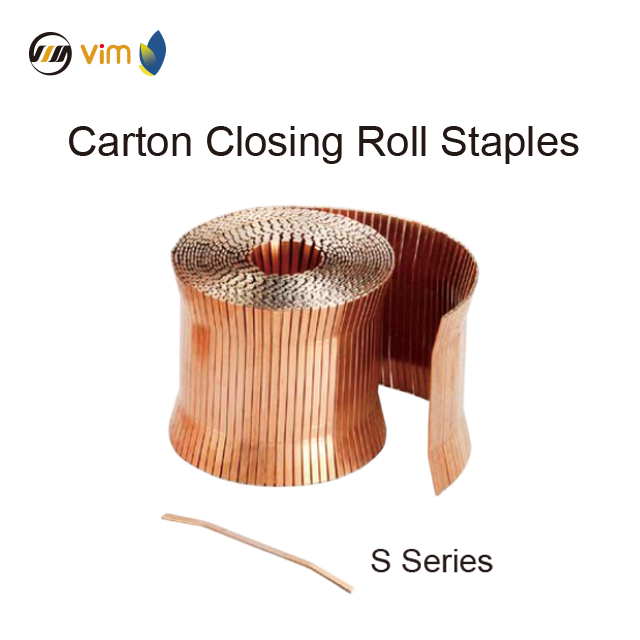

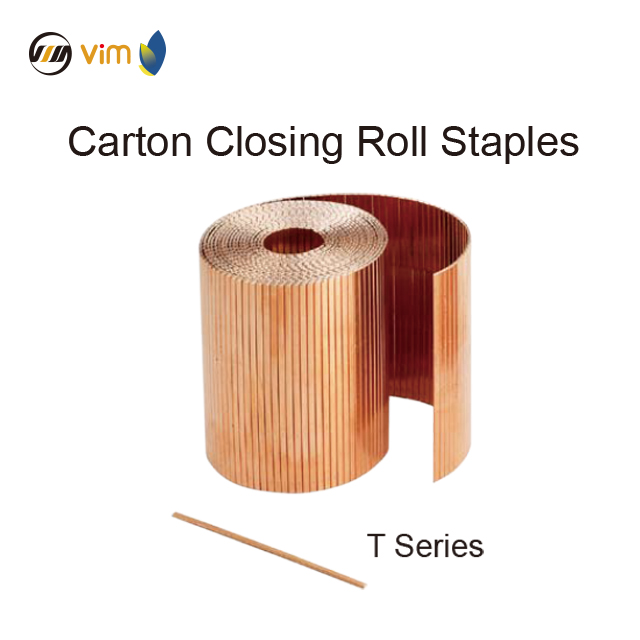

Staple Series	S Series	S Series	S Series	T Series	T Series
Width(B)x Thickness(C)	0.9 x 1.9 mm	0.9 x 1.9 mm	0.9 x 1.9 mm	0.9 x 1.9 mm	0.9 x 1.9 mm
Length(D)	12 mm	15 mm	18 mm	15 mm	18 mm
Capacity	4000 pcs	4000 pcs	4000 pcs	5000 pcs	5000 pcs





APPLICATION



FEATURES

I can operate continuously by patching staples with tape
Penetration depth of staples is adjustable (0~5mm)
Proper design for high-speed operation
Automatic stop device is on when staples are running out
